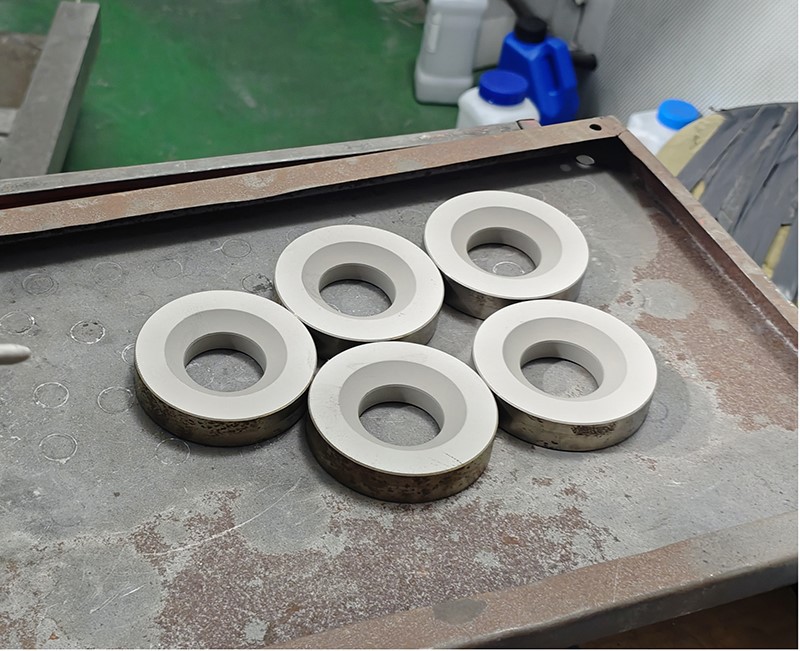

| Chromium Carbide Valve Seats | ||
| Size Range | 1/2" to 56" (Custom sizes available) | |
| Pressure Rating | PN10-PN420 (Class150-2500) | |
| Body Material | A105, A350 LF2, A182 F304, A182 F316, A182 F321, A182 F51, A182 F53, A182 F55, A182 F60, A182 F44, A564 630 (17-4PH) INCONEL625, INCONEL718, INCONEL825, Monel 400, Monel 500 etc |
|
| Core Process/Coating | ENP,HCR,STL6, STL12, STL20,Cr3C2, WC-Co, WC-Cr3C2-Ni, TiC-NiMo, SiC, CrC,ZrO2, Al2O3, Cr2O3, ZnO, TiO, Al2O3-TiO2,STL1, STL6, STL12,Ni60, Ni55, Ni45 etc. | |
| Operating Temperature Range | ≤1200°C | |
| Parameter Category | Core Technical Parameters | Standards for Determining Advanced Technological Level |
| Machining Seat accuracy | ≤ 0.025 mm | ≤ 0.005 mm (Ultra-High Precision) |
| Processing Seat Roundness | ≤ 0.025 mm | ≤ 0.011 mm (Micron-Level ) |
| Seatsconcentricity | ≤ 0.025 mm | ≤ 0.005 mm (Ultra-High Precision) |
| Other supplements | ≤ 0.4 μm | ≤ 0.1 μm (Mirror-Level) |
| Parameter Category | Core Technical Parameters | Criteria for High-End Technical Level |
| Coating Thickness Control | Thickness Uniformity | Thickness deviation at any spherical position ≤±8% (stricter than the general ±10% standard) |
| Thickness Tolerance Range | 100 - 300 μm (common range for wear-resistant layers); special ranges can be noted. No missed spraying for ultra-thin coatings (<10μm) | |
| Coating Adhesion Performance | Surface Hardness | HV 1300+ |
| Bond StrengthBond Strength | ≥80 MPa | |
| Interface PorosityInterface Porosity | <0.5% | |
| Coating Surface Quality | Surface Roughness (Ra) | ≤0.2 µm |
| Spraying Accuracy (Positioning & Coverage) | Spraying Positioning Accuracy | ±0.1mm |
HVOF Process: Custom Surface Armor for Extreme Abrasion-Corrosion Service
The success of HVOF chromium carbide valve seats stems from the unique qualities the HVOF process imparts to the coating: exceptional density, strong bond strength, and superior coating integrity.
The Wear and Corrosion Guardian for Slurry and Ash Systems
A quintessential application of this technology is as HVOF chromium carbide valve seats for slurry valves. In systems handling mining tailings, power plant hydraulic ash, flue gas desulfurization slurry, and similar media-mixtures of highly abrasive solids and corrosive liquids-our chromium carbide coating resists particle cutting with its high hardness while its inherent corrosion resistance helps combat chemical attack from the slurry, thereby delivering service life far exceeding conventional materials for slurry valves.
The True Meaning of a "Hardface" Coating
Unlike ordinary coatings, the Hardfaced HVOF chromium carbide valve seats produced via HVOF achieve a bond strength approaching metallurgical fusion between the coating and substrate. The coating itself is hard and has low porosity, capable of withstanding continuous particle impact without spalling. Its "hardface" characteristic is genuine, representing a high-performance, low-distortion alternative to traditional weld-overlay hardfacing alloys.
Advantage of Stability at Elevated Temperatures
Chromium carbide coatings maintain good microstructural stability and oxidation resistance at high temperatures (typically up to 800-900°C). This allows Chromium valve Seats to perform well not only in ambient temperature slurries but also in applications like hot dust-laden flue gas or boiler sootblower systems where thermal wear and oxidation are present, outperforming many wear materials that are only effective at room temperature.
Why Choose TongBall's HVOF Chromium Carbide Coated Valve Seats?
Precision Targeting of Combined Failure Modes
We specialize in addressing combined failures where "wear is primary, corrosion is secondary" or "high-temperature oxidation accompanies wear," offering a one-stop surface protection solution.
Exceptional Economy and Environmental Friendliness
Compared to using solid high-alloy materials or on-site weld repair, the HVOF coating process uses less material, has low heat input, and minimal effect on the substrate. It is an efficient, clean, and economical surface enhancement and remanufacturing technology.
Top-Tier HVOF Coating Process Control
We possess a mature process database for spraying chromium carbide materials, enabling precise control over coating microstructure to optimize the balance of hardness, toughness, and residual stress for the best overall service performance.
End-to-End Support from Analysis to Validation
We can perform wear analysis based on your service samples, recommend the optimal coating formulation (e.g., Cr3C2-NiCr), and provide coating performance test reports along with references from successful application cases.
When wear teams up with corrosion and high temperature to shorten equipment life, single-method protection often addresses one challenge at the expense of another. TongBall's HVOF Chromium Carbide Coating Technology, with its meticulously engineered composite surface armor, provides synchronized defense against multiple destructive forces, laying a foundation for long-term, reliable operation of your valves in the most complex and demanding conditions.
