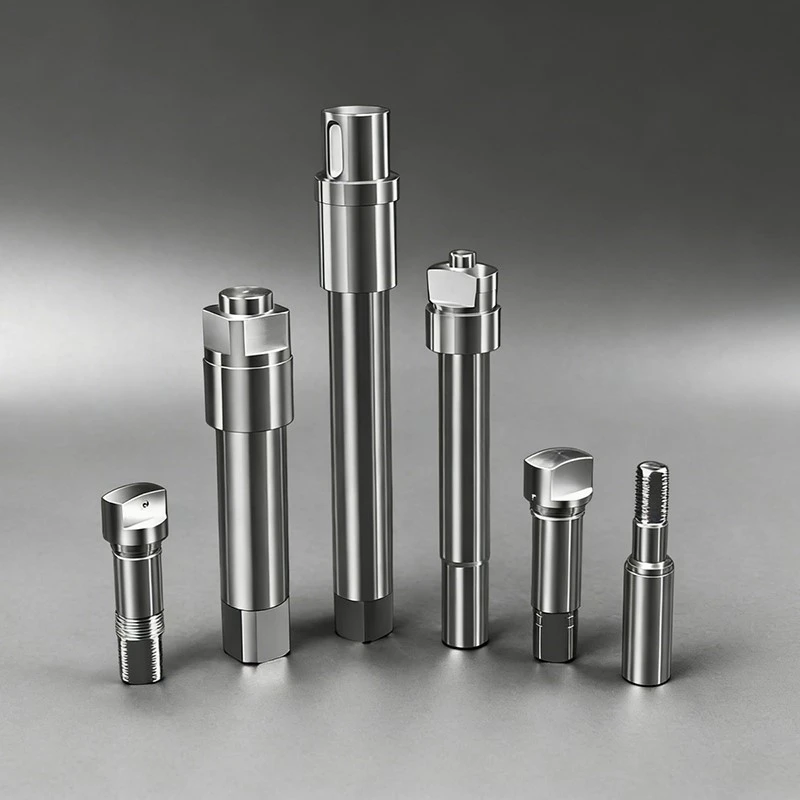

| 17-4PH Stainless Steel Stems | ||
| Size Range | 1/2" to 56" (Custom sizes available) | |
| Pressure Rating | PN10-PN420 (Class150-2500) | |
| Body Material | A105, A350 LF2, A182 F304, A182 F316, A182 F321, A182 F51, A182 F53, A182 F55, A182 F60, A182 F44, A564 630 (17-4PH) INCONEL625, INCONEL718, INCONEL825, Monel 400, Monel 500 etc |
|
| Core Process/Coating | ENP,HCR,STL6, STL12, STL20,Cr3C2, WC-Co, WC-Cr3C2-Ni, TiC-NiMo, SiC, CrC,ZrO2, Al2O3, Cr2O3, ZnO, TiO, Al2O3-TiO2,STL1, STL6, STL12,Ni60, Ni55, Ni45 etc. | |
| Operating Temperature Range | ≤1200°C | |
| Parameter Category | Core Technical Parameters | Standards for Determining Advanced Technological Level |
| Machining Stem accuracy | ≤ 0.025 mm | ≤ 0.005 mm (Ultra-High Precision) |
| Processing Stem Roundness | ≤ 0.025 mm | ≤ 0.011 mm (Micron-Level ) |
| Other supplements | ≤ 0.4 μm | ≤ 0.1 μm (Mirror-Level) |
| Parameter Category | Core Technical Parameters | Criteria for High-End Technical Level |
| Coating Thickness Control | Thickness Uniformity | Thickness deviation at any spherical position ≤±8% (stricter than the general ±10% standard) |
| Thickness Tolerance Range | 100 - 300 μm (common range for wear-resistant layers); special ranges can be noted. No missed spraying for ultra-thin coatings (<10μm) | |
| Coating Adhesion Performance | Surface Hardness | HV 1300+ |
| Bond StrengthBond Strength | ≥80 MPa | |
| Interface PorosityInterface Porosity | <0.5% | |
| Coating Surface Quality | Surface Roughness (Ra) | ≤0.2 µm |
| Spraying Accuracy (Positioning & Coverage) | Spraying Positioning Accuracy | ±0.1mm |
Core Product: High-Strength Stems for Demanding Service
Our 17-4PH Stainless Steel Stems are engineered to provide solutions where mechanical performance is critical.
Controllable Strength & Hardness: The primary benefit of 17-4PH valve stems is their ability to be heat-treated post-machining to achieve specific, high levels of tensile strength and hardness (e.g., H900 condition). This makes them significantly stronger and more wear-resistant than solution-annealed austenitic grades, ideal for components subject to high shear and abrasive forces.
The Durable Choice for Rotary Valves: This property is particularly valuable for Stainless ball valve stems, which experience torsional loads. Our Hardened Stainless ball valve stems in 17-4PH resist galling, deformation, and wear at the sealing interfaces far better than standard grades, ensuring reliable, long-term operation and torque consistency in demanding quarter-turn applications.
A Specialty Metal Solution: As part of our portfolio of Specialty Stainless valve stems, 17-4PH represents a high-performance Metal valve stem solution that bridges the gap between corrosion-resistant austenitic steels and ultra-high-strength but less corrosion-resistant steels.
Comprehensive Engineering & Support
We provide the necessary expertise to integrate these high-performance stems into your designs and maintenance plans.
Technical Specification & Procurement
Selecting the correct heat treatment condition (e.g., H1150 for toughness, H900 for peak strength) is crucial. We provide expert guidance to help you specify and procure the right 17-4PH valve stem for your mechanical and environmental requirements.
Precision-Matched for Maintenance
For repair and overhaul, we ensure that replacement Stainless ball valve stems or other components are supplied in the correct condition and are compatible with existing valve geometry, supporting efficient valve seat replacement and system refurbishment.
Lifecycle Performance Integrity
We supply full material and heat-treatment certifications, along with handling guidelines, to ensure the stem's engineered properties are maintained through installation and service, preserving valve reliability.
Why Choose TongBall 17-4PH Stems?
Precision Heat Treatment Expertise
We manage the entire process, from machining to final heat treatment, ensuring each 17-4PH valve stem achieves its specified mechanical properties consistently and reliably.
Wear Resistance for Long Life
The high hardness of our Hardened Stainless ball valve stems dramatically reduces wear at critical points, extending service intervals and improving valve lifecycle cost.
Strength in Compact Designs
The high strength-to-weight ratio allows for robust performance in compact or weight-sensitive valve designs, providing design flexibility without sacrificing durability.
Proven in Critical Motions
Our stems are trusted in applications where the valve stem is integral to precise and reliable actuation under load, from aerospace fuel controls to high-pressure chemical isolation.
When valve performance depends on a stem that can withstand high mechanical stress and wear while resisting corrosion, 17-4PH Stainless Steel offers a precisely engineered solution. Its unique ability to be strengthened after machining provides designers and engineers with a critical performance advantage.
Partner with TongBall for stems that deliver engineered strength. Our 17-4PH Stainless Steel Stems and Hardened Stainless ball valve stems provide the durable, high-performance foundation required for your most demanding valve applications.
